Technical Data
| Smart Focus 130 | Smart Focus 200 | Smart Focus 300 | |
| Cutting current Marking current Duty cycle Cutting range
Plasma gases |
35 – 130 A 12 – 50 A 100 %1 – 32 mm 40 mm 25 mm O2, Ar/H2, N2, Air O2, N2, N2/H2 (F5), Air 1,030 x 570 x 1,260 mm 266 kg |
35 – 200 A 12 – 50 A 100 %1 – 40 mm 60 mm 30 mm O2, Ar/H2, N2, Air |
35 – 300 A 12 – 50 A 100 %1 – 60 mm 80 mm 40 mm O2, Ar/H2, N2, Air O2, N2, N2/H2 (F5), Air 1,030 x 680 x 1,450 mm 488 kg |
| Plasma machine torch Quick change head |
PerCut 2000 PerCut 4000 |
PerCut 2000 PerCut 4000 |
PerCut 4000 PerCut 4000 |

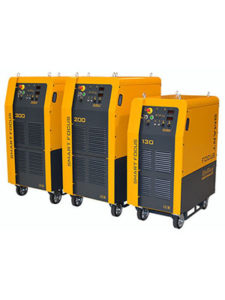

With just a few settings the new plasma cutting units of the Smart Focus series achieve excellent results in the cutting range from 1 to 80 mm. Even under challenging conditions highest cutting quality and speed are realised. Therefore we use our proven cutting technologies as for example Contour Cut for cutting mild steel. The optimised gas control units and torches protect the consumables, reduce the gas consumption and the costs per cutting meter.
