Technical Data
| Power source Cutting current at 100% duty cycle Cutting range Piercing Dimensions (L x B x H) Weight |
PA-S45 W 45 A / 85 A / 130 A 3 – 45 mm up to 20 mm 950 x 710 x 1020 mm 240 kg |
|
| Plasma torches | Machine torches
Hand torch |
PB-S45 W PB-S44 W PB-S45 WH |

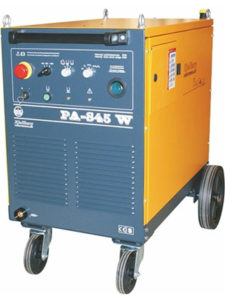

The plasma cutting unit PA-S45 W is the all rounder of the PA-S series. It offers the right package for the majority of simple cutting tasks and covers a cutting range from 3 mm up to 45 mm. In addition to the well-proven torch PB-S45 W for air, oxygen and argon/hydrogen, the PB-S44 W with swirl gas function for air as plasma gas is also available as an alternative. This torch increases the piercing capacity and process stability for many simple applications.
In addition to machine torches, the PA-S45 W can also be operated with hand torches including a gouging option.
