Technical Data
| Power source Cutting current at 100% duty cycle Cutting rangePiercing Dimensions (L x W x H) Weight |
FineFocus 1600 (2x FineFocus 800) 40 – 600 A Dry plasma cutting: 5 – 160 mm Underwater plasma cutting: 5 – 100 mm up to 80 mm 2x 1375 x 870 x 1505 mm 2x 552 kg |
|
| Plasma torches | Dry / Underwater Dry Underwater |
PB-S80 W PB-S151 W PB-S100 WU |

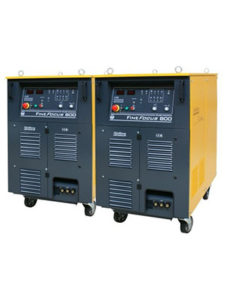

FineFocus 1600 consists of two FineFocus 800 power sources connected in parallel. It cuts materials with a thickness of up to 160 mm (dry plasma cutting) or, respectively, up to 100 mm (unterwater plasma cutting). Furthermore, it is possible to use two plasma torches PB-S80 W (up to 300 A) simultaneously.
